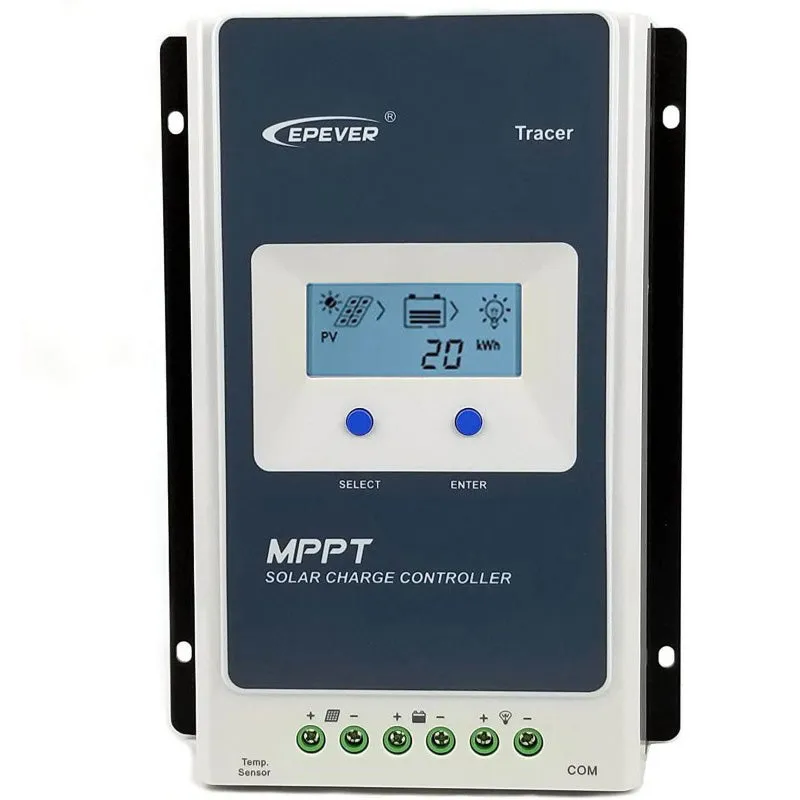

EPEVER 40A MPPT Charge Controller

EPEVER 40A MPPT Solar Charge Controller

The EPEVER 40A MPPT Charge Controller is designed to efficiently control the Solar Charge Controller charging and discharging of your solar energy system, ensuring safe operation and optimal performance. With advanced MPPT technology and multiple load control modes, Solar Charge Controller offers versatile functionality and reliable protection for your batteries.

Features:

• Negative Ground Design
• System Voltage Ratings: 12V, 24V DC
• Compatible with GEL, Sealed, Flooded, and Lithium Solar Charge Controller Batteries
• MPPT Tracking Efficiency: ≥99.5%
• Maximum Conversion Efficiency: 98%

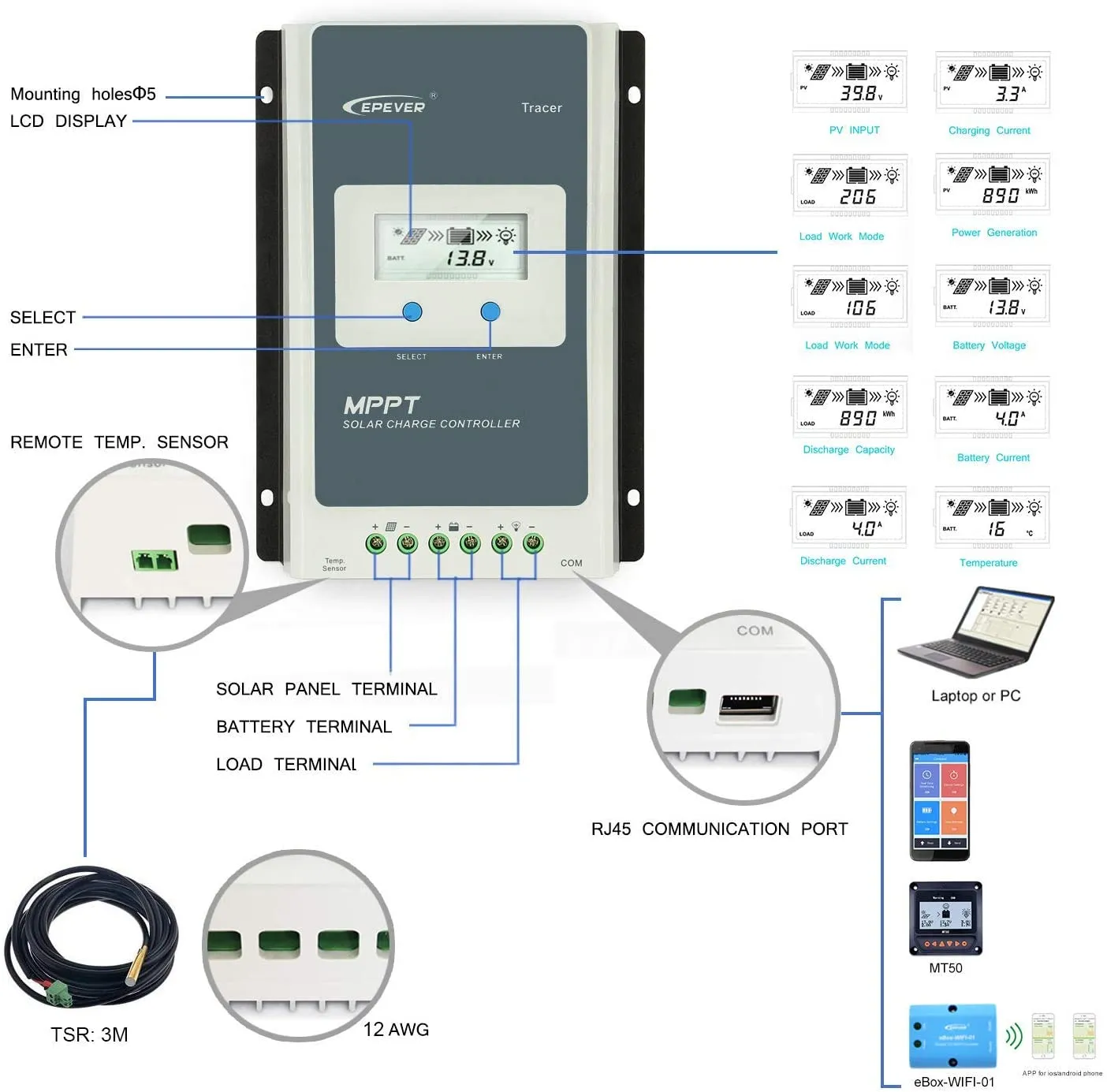

• LCD Display for Dynamic Solar Charge Controller Monitoring
• PC Monitoring and External Display Support
• Charging Power and Current Limitation Function
• User Programmable for Battery Types and Load Control
• Multiple Protection Features Solar Charge Controller
• Additional Features: Blacklight LCD Display, Common Negative Ground, Support for Lithium Battery

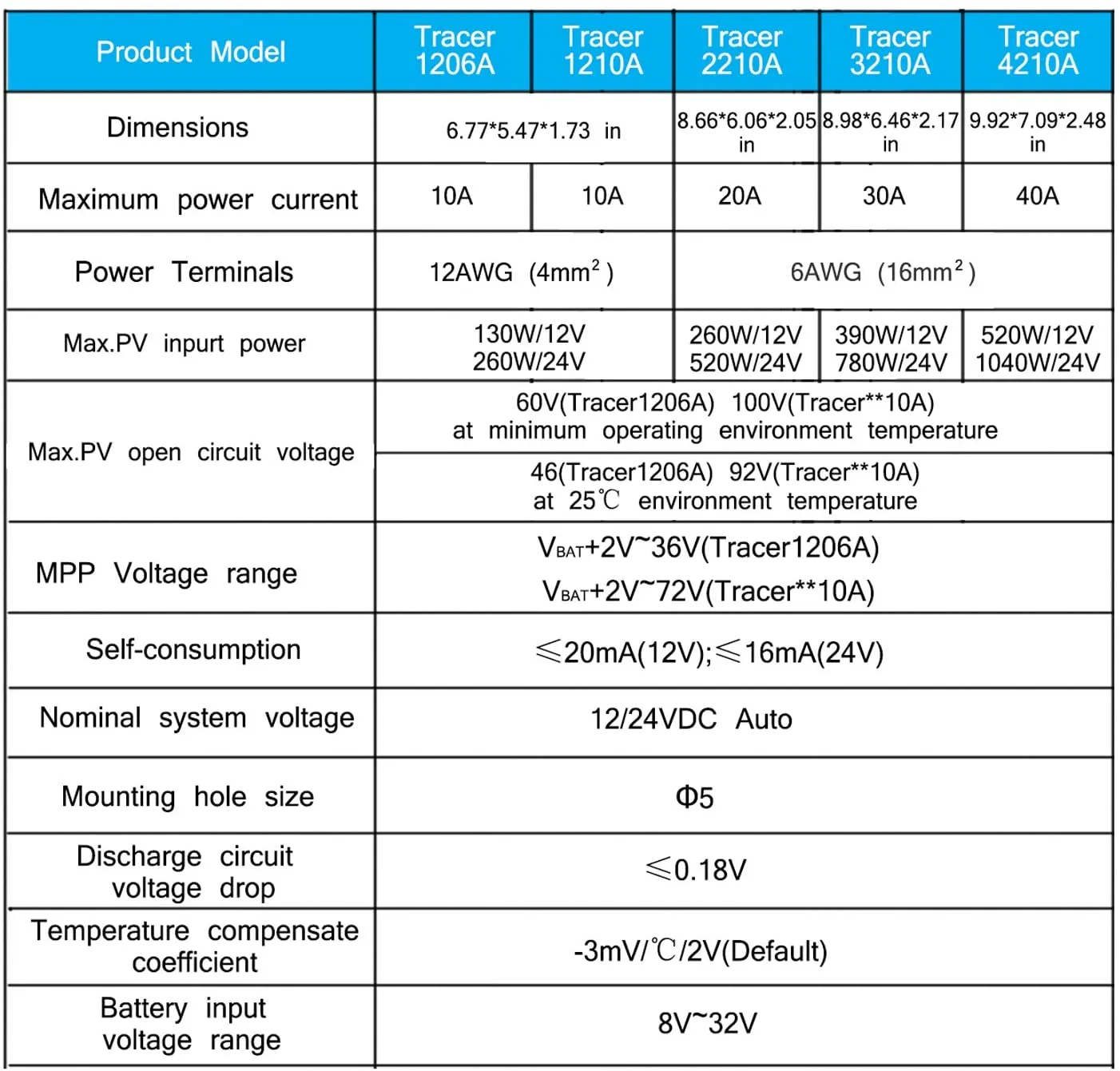

Specification:

• Rated Charge Current: 40A
• Solar Charge Controller Max Input Power: 12V @ 520W | 24V @ 1040W
• Max PV Open Circuit Voltage: 100VDC (92V at 25°C)
• Battery Type: Lead-acid (Gel, Sealed, Flooded) and Lithium
• Battery Voltage Range: 9V - 32V Solar Charge Controller
• Common-Negative Ground Controller
• Charging Power and Current Limitation Function

Package List:

• 1 x Tracer 4210AN Solar Charge Controller
• 1 x User Manual
